Explore BACnet devices and view BACnet objects using the BACnet/MSTP serial port and BACnet/IP network protocols.

The present values are shown in float, hexadecimal and binary. Further, a graph and a colored percentage are shown.

Write a new float or hexadecimal value by double-clicking on the value.

search

Graph

For each object the present value is shown in a graph. So you can see the history from each object. Further, you can set an Alias for each object by a double click on the Alias column.

search

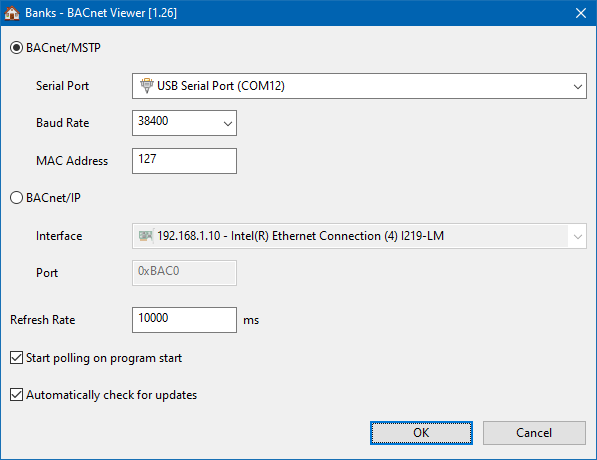

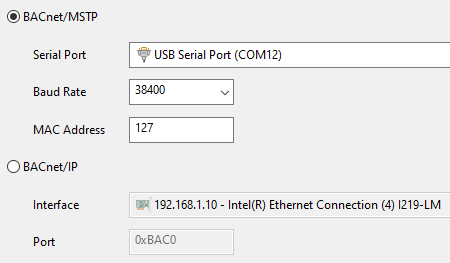

BACnet/MSTP & BACnet/IP

RS485 serial port (use any USB-to-RS485 Converter) and UDP/IP network protocol are supported.
Version 1.02 · · 395kb · VirusTotal Report
New: Graph fixed History
Do you like the software? Make a Donation!
You don’t need to have a paypal account in order to make a donation.
Do you need additional features or would you like to help with the translation? Send a Mail!

Install using package managers:

winget install --id=the-sz.Banks -e --forcecontent_copy choco install banks.portable -y --ignore-checksumcontent_copy

Supported Languages:

English English
German German
Greek Greek

Supported Operating Systems:

Windows 11 Windows 11
Windows 10 Windows 10
Windows 8 Windows 8
Windows 7 Windows 7
Windows Vista Windows Vista
Windows XP Windows XP
Windows 2000 Windows 2000
Windows NT 4.0 Windows NT 4.0
Windows Server Windows Server
Windows Me Windows Me
Windows 98 Windows 98

Command line options:

/l <language code> Change user interface language to specified 2 letter language code

Screenshot:

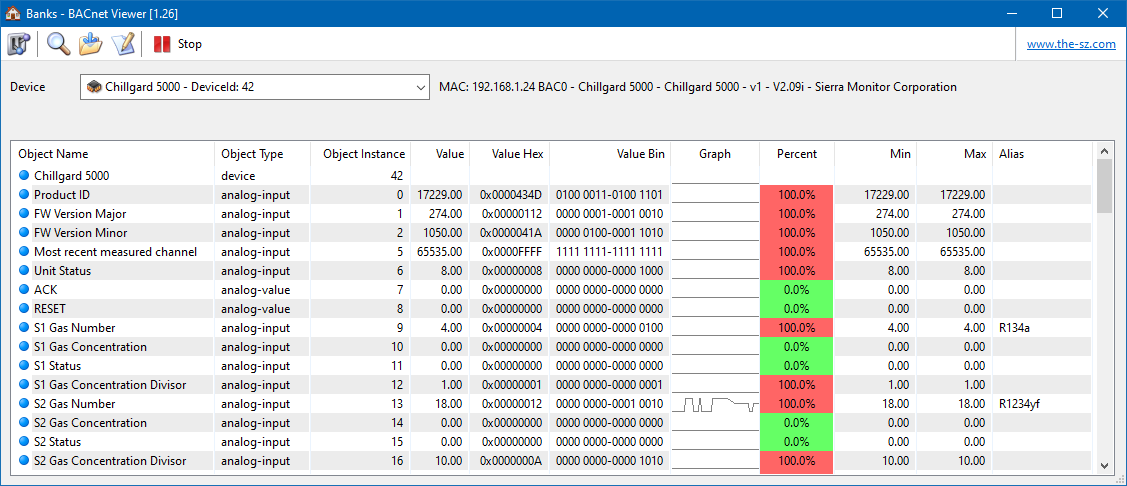

Explore BACnet devices and view BACnet objects
